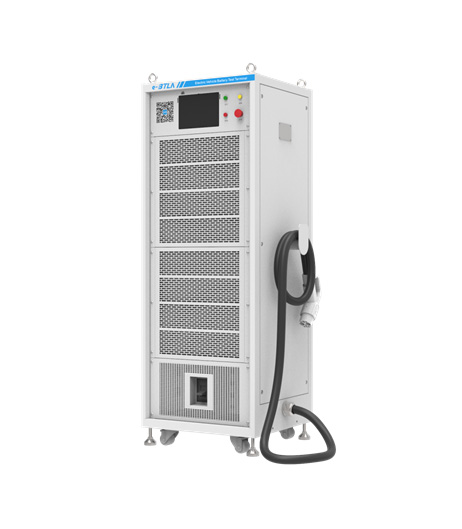

    90kW High Precision New energy vehicle EV battery test system

    Ask Lasest Price
    Brand Name : ANE
    Model Number : BTLA-ATS090-250H-A
    Certification :
    Price : Exwork: 2,0000~44,000 USD
    Payment Terms : T/T,
    Supply Ability : 60 Sets Per Month
    Delivery Time : 60 Work days
    • Product Details
    • Company Profile

    90kW High Precision New energy vehicle EV battery test system

    90kW High Precision New energy vehicle EV battery test system

    Product introduction

    ANE battery test system for electric vehicles is an automatic test solution for on-board power batteries. It can test and verify the fault and safety of the on-board power battery to ensure the reliable performance and stable function of the battery. With its own touch screen, the operation procedure is simple and quick, and the test results can be sent to the user's mobile phone. Using the design architecture of energy feedback, the electric energy generated in the process of battery discharge is returned to the mains or directly transferred to the battery that needs to be charged, reflecting the design concept of energy saving and environmental protection.

    The test system has seamless charging and discharging switching function, and adopts full digital design to ensure the accuracy and timeliness of control, so that the output is stable and the response is rapid. Can monitor the test data in real time, and can edit a variety of work steps, flexible, convenient and fast.


    Test Item

    Battery capacity detectionBattery voltage consistency checkDC internal resistance detection
    Battery system temperature detectionBattery charging port temperature detectionSOC error detection
    Insulation detectionCurrent and voltage error detectionVehicle DC circuit contactor adhesion detection

    Specification

    Product model

    BTLA-ATS090-250H-A
    Number of channels1
    DC side parameter
    Rated voltage300Vdc
    Rated power90kW
    Current range±250A/Channel
    Current accuracy0.05% F.S
    Voltage range50Vdc~950Vdc
    Voltage accuracy0.05% F.S
    AC side parameter
    Wiring systemThree phase five wire system
    Rated voltage380Vac
    Voltage range380Vac±15%
    Frequency range50/60Hz±5Hz
    PF0.99
    THDi≤5%
    Basic characteristic
    Peak efficiency≥90%
    Forward and backward switching time≤10ms
    Island protectionPossess
    Protective characteristicMultiple safety protection, AC/DC over and under voltage protection, over current protection, short circuit protection, DC back connection protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc.
    Cooling modeIntelligent forced air cooling
    Noise≤75dB
    Operating temperature range-20℃~+45℃
    Protection classIP32
    Relative humidity≤95%RH,Non-condensation
    Altitude3000m
    Communication modeCharging connector, 4G
    LCDPossess
    Overall dimension W*H*D0.65*1.8*0.6m
    Weight350kg

    * Due to the continuous improvement of product technology, subject to change without prior notice. All performance and parameters are subject to the latest confirmation of our technical department.
