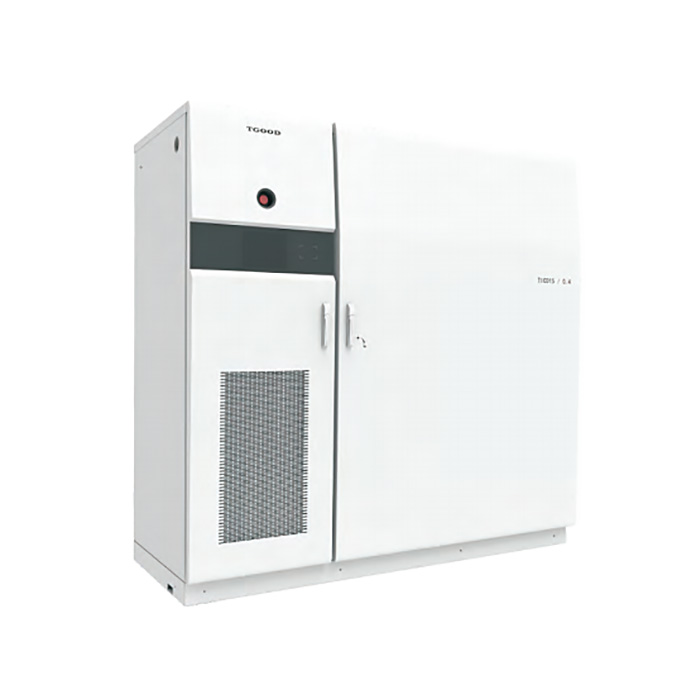

60 KW / 90 KW All-In-One Energy Storage And Charging System For
Electric Vehicle
60 kW/90 kW All-in-one energy storage and charging system is an
outdoor energy storage charging equipment, which integrates
intelligent energy storage and electric vehicle charging. Flexible
intelligent power distribution is adopted for energy storage and
charging to solve the influence of grid power limit. Different
power ranging 15kW~30kW input and 60kW~90kW charging output power
can be realized according to the number of modules configurations.
It can support a maximum of 5 charging terminals to improve the use
efficiency of charging and discharging modules and equipment
utilization rate.
Features:
[ Menu selection ]
——Configure AC and DC interfaces to meet the access requirements of
AC and DC equipment;
——Storage and charging functional unit design, configuration
according to requirements,shorten the customized development cycle.
[ Multi-functional integration ]
——Power capacity-increase design to effectively solve the impact of
power limit of power grid in charging station and CMS Flexible
charging of electric vehicle , extend the life cycle of battery by
30%;
——Monitoring the running state of the whole machine,control and
protect function to ensure the safety of users;
——It supports multiple charging and discharging strategies
including taking turns charging, equal charging and intelligent
charging,and the charging mode is more flexible.
[ Modular design ]
——With the modular design of storage and charging, the system
networking scheme is flexible, convenient for capacity expansion
and maintenance;
——Modular compatible design, to achieve the common power level
module interchange.
[ Low cost, integrated design ]
——Prefabricated design, small size, small floor space and short
construction period;
——High integration of storage and charging, reducing the initial
investment cost of multiple equipment;
——No-load power intelligent control, reduce standby loss and reduce
operating costs;
——Customized system economic operation strategy, saving overall
energy cost.
Technical Parameters:
| Model | TICD15/0.4 | TICD30/0.4 |
| Grid interface | | |
| rated power | 15kW | 30kW |
| voltage range | AC380V ± 15% |
| Energy storage system | | |
| input power | 15kW | 30kW |
| Output Power | 60kW |
| Output voltage (battery side) range | DC250V~DC750V |
| Stabilized voltage precision | ≤1% |
| Stabilized current precision | ≤1% |
| Battery system nominal energy | 60kWh±5kWh |
| Battery system maximum output energy | 45.6kWh |
| Charge and discharge depth | 80% |
| Battery system cycle life | 0.5C charging, 1C discharge, 80% DOD 3500 times |
| Replenishment (energy storage charging) efficiency | ≥95% |
| Charging system | | |
| Rated power | 60kW~90kW |
| Charging efficiency | ≥95% |
| Output voltage range | DC200V~DC750V |
| Stabilized voltage precision | ≤0.5% |
| Stabilized current precision | ≤1% |
| Charging interface | 1 | |
| Basic characteristics | | |
| Operating temperature | -20℃～+55℃(+45℃～+55℃power derating ) |
| Protection level | IP54 |
| noise | ≤ 70dB |
| Energy storage startup mode | Cloud/local boot |
| Charging start mode | Swipe, mobile app, local boot |
| Relative humidity | 95% RH, no condensation |
| Altitude | 2000m |
| In and out line | Lower in line, lower out line |
| Size (W*D*H) | 2300mm*1000mm*2200mm |
All performance and parameters shall be subject to the latest
confirmation of our technical department.
