Energy Storage System In A Movable Prefabricated Cabin With
Hydraulic Lifting System, Can Be Customized

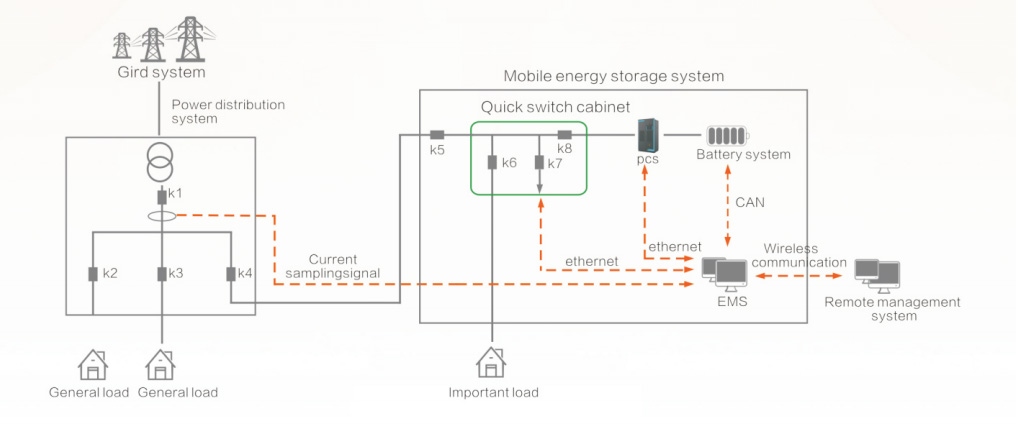

The ANE movable energy storage system integrates cabin, energy
storage system, quick switch cabinet, system control cabinet,
energy management system and hydraulic system. Features with easy
moving and installing, suitable for power capacity increase, peak
load shifting, power grid reconstruction, temporary power supply,
standby power supply and other scenarios.
System features
Plug and play
Small and compact, high integration, external connection interface
reserved, very convenient to make quick connection.
Easy expansion
By droop control, realizing the function of multi-machine parallel
connection without communication, with flexible access and
convenient capacity expansion.
Dual layers of protection
Dual layers of protection from equipment and data, constructing the
multi-dimensional, multi-angle and systematic charging-discharging
safety model from the aspects of space and time, ensure the
system’s safe and reliable operation.
Seamless switching
Integrated on/off grid quick switching system, making the switching
in millisecond, without important load power failure.
Functional diversity
The system integrates the functions of energy storage converter,
reactive compensation, harmonic control, off-grid operation and
other power products
Flexible charging & discharging
Dynamically adjust the charging strategy, multi-stage adjustment
and multi-dimensional compensation, referring to the charging &
discharging power demand, power grid information, battery
information, environmental parameters, historical data system and
other influencing factors, making charging & discharging with
optimal current and voltage to extend the battery life.
| Model | TIMS/100/0.38AC |
| AC side parameter | |
| Rated power | 100kW |
| Rated Voltage | AC380V |
| Voltage range | AC380V±10% |
| Rated frequency | 50Hz |
| Frequency range | 45Hz 55Hz |
| Current range | ±160A |
| DC side parameter | |
| Rated power | 100kW |
| Rated Voltage | DC652V |
| Voltage range | DC581V-DC734V |
| Current range | ±160A |
| Battery capacity | 400kWh |
| Basic characteristics | |
| On- grid/off-grid switching time | ≤10ms |
| Effectiveness | ≥95% |
Protection level | IP54
|
| Operating temperature | - 25℃ ~+45℃ |
| Storage temperature | - 40℃ ~+70℃ |
| relative humidity | ≤95%RH, no condensation |
| altitude | ≤2000m |
| Power Interface | 1 /160A port (three-phase four-wire) 1/ 70A port (three-phase four-wire) 1 / 35A port (three-phase four- wire) 1 / 16A port (single phase) |
| Communication interface | 2 RS485 port, 2 Ethernet port |
| Size (W*D*H) | 2600mm*3850mm*2896mm (Can be customized) |
| Weight | 9.45T |
All performance and parameters shall be subject to the latest
confirmation of our technical department.
